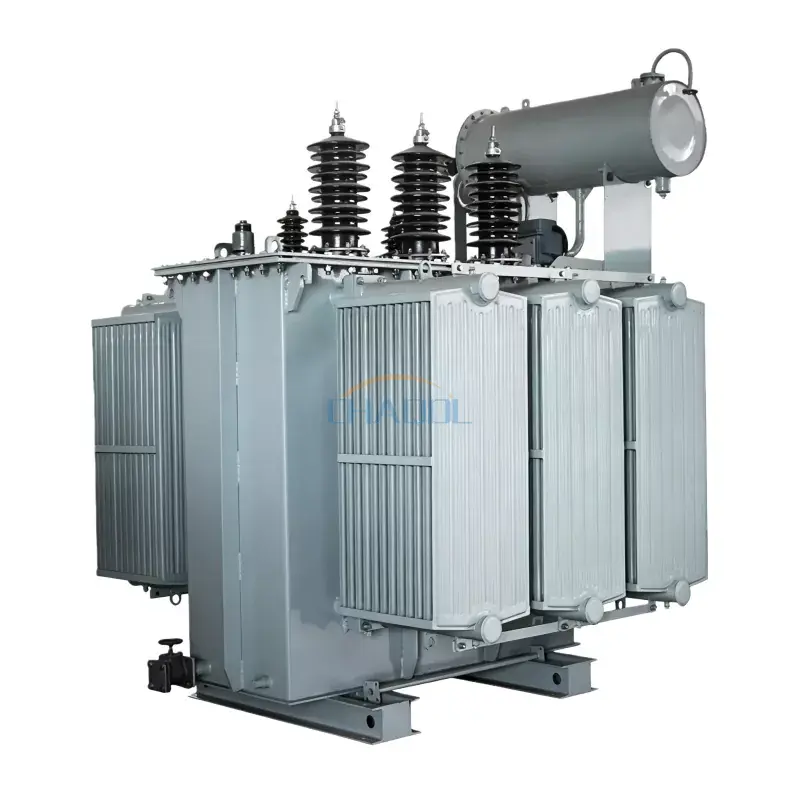

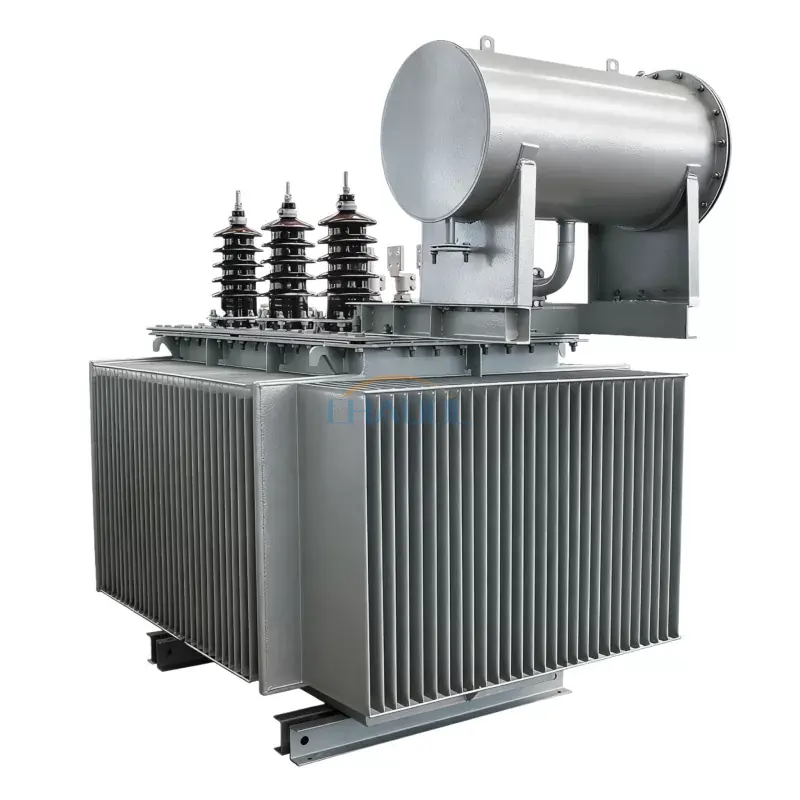

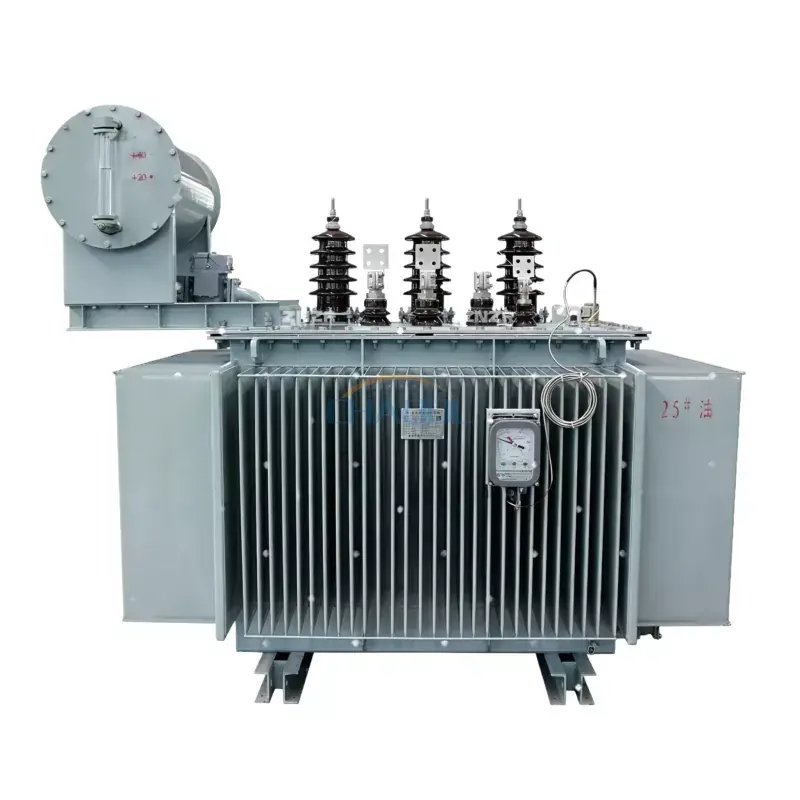

Anqiang Power kompaniyasining 33KV moyli taqsimlovchi transformatori sanoat va tog'-kon korxonalari va fuqarolik binolari uchun elektr ta'minoti va tarqatish tizimlarida muhim jihozlardan biridir. U 3KV tarmoq kuchlanishini foydalanuvchilar tomonidan ishlatiladigan 220/1400V shina kuchlanishiga kamaytirishi mumkin. Mahsulot shahar elektr tarmoqlarini yangilash, turar-joy binolari, fabrikalar, ko'p qavatli binolar, savdo markazlari, aeroportlar, temir yo'llar, docklar, avtomobil yo'llari va boshqa ko'plab tashqi muhitlarda keng qo'llaniladi. Ushbu moyli transformator mukammal issiqlik tarqalish ko'rsatkichiga va kuchli ortiqcha yuk ko'tarish qobiliyatiga ega. IP45 himoyasi ostida, u to'liq yuk holatini saqlab, majburiy havo sovutmasdan, 130% ortiqcha yuk bilan ham uzoq vaqt barqaror ishlashi mumkin.
|
Nominal quvvat (kVA) |
Kuchlanish darajasi (kV) |
Empedans kuchlanishi (%) |
Yo'qotish (KVt) |
Yuksiz oqim (%) |
Umumiy vazn (kg) |
||
|
Yuqori bosim |
Past bosim |
Yuk yo'q |
Yuklash |
||||
|
50 |
38.5 36 35 34.5 33 |
0.4 0.415 0.433 |
6.5 |
0.21 |
1.21 |
2.0 |
590 |
|
100 |
0.29 |
2.02 |
1.8 |
790 |
|||
|
125 |
0.34 |
2.38 |
1.7 |
950 |
|||
|
160 |
0.36 |
2.83 |
1.6 |
1020 |
|||
|
200 |
0.43 |
3.33 |
1.5 |
1170 |
|||
|
250 |
0.51 |
3.96 |
1.4 |
1340 |
|||
|
315 |
0.61 |
4.77 |
1.4 |
1530 |
|||
|
400 |
0.73 |
5.76 |
1.3 |
1780 |
|||
|
500 |
0.86 |
6.93 |
1.2 |
1960 |
|||
|
630 |
1.04 |
8.28 |
1.1 |
2290 |
|||
|
800 |
1.23 |
9.90 |
1.0 |
2640 |
|||
|
1000 |
1.44 |
12.15 |
1.0 |
3100 |
|||
|
1250 |
1.76 |
14.67 |
0.9 |
3630 |
|||
|
1600 |
2.12 |
17.55 |
0.8 |
4235 |
|||
|
2000 |
2.61 |
21.50 |
0.8 |
4910 |
|||
|
2500 |
3.15 |
23.00 |
0.8 |
5840 |
|||
